Research · WP2 · Strategic shading

Making every tree count: strategic shading for river cooling

In a landscape where land is precious, river restoration isn't just about planting more trees — it's about planting them where they matter most.

The challenge: land vs. water

Riparian woodland is a critical tool for cooling warming rivers — but we cannot simply reforest entire catchments. Land is a finite resource, often competed for by agriculture, housing and infrastructure.

By simulating thousands of solar interactions with detailed ray-tracing models, we analysed how trees cast shade on water. The data reveals that a strategic approach can achieve maximum cooling with a minimal land footprint. Here are three rules for making every tree count.

Rule 1

Prioritise the “first line”

One of the most persistent myths in restoration is that you need a deep, dense forest buffer to cool a river. Our simulation data suggests otherwise. We modelled the cooling efficiency of a single row of trees versus adding a second row behind it — and found a clear saturation point.

  • The power of the edge. Filling the immediate riverbank (“Line 1”, the blue series) yields a steady, linear increase in cooling — rising from ~6% to over 12%. Every gap filled along the water's edge translates directly into reduced solar radiation.
  • The law of diminishing returns. Once the first line is established, adding a second row behind it (the orange series) offers negligible additional shading of the water surface.
Chart: river cooling versus number of tree rows — Line 1 (blue) rises steadily while Line 2 (orange) plateaus
Cooling as riverbank rows are filled: Line 1 (blue) rises steadily; a second row (orange) adds little.
Strategy: fill the water's edge first. A complete first line beats a patchy double buffer.
Rule 2

Crown shape matters

When selecting species for restoration we often look at growth rate or biodiversity value. But for temperature management, the physical shape of the tree is decisive. We analysed four distinct crown shapes to determine their shading efficiency.

  • Broad is better. Trees with wide, spreading crowns (Shape A — typical of broadleaves like oak or beech) outperformed narrow, conical forms (Shape D — typical of some conifers) by a significant margin.
  • The efficiency gap. The difference in shading performance between the best and worst shapes is nearly 20%.
Comparison of shading efficiency across four crown shapes A to D
Shading efficiency by crown shape (A–D): broad, spreading canopies (A) far outperform narrow, conical ones (D).
Strategy: on a per-tree basis, prioritise species with wide lateral spread. A broad canopy does the work of two narrow ones.
Rule 3

Know the limits of river width

The river itself is the biggest variable. Our model demonstrates that shading potential decays exponentially as the channel widens.

  • Small streams (<5 m). Shading is highly effective — even moderate vegetation can block over 80% of solar radiation.
  • The 30 m threshold. On wide rivers (30 m+), even a mature canopy struggles to reduce radiation by more than 20%.

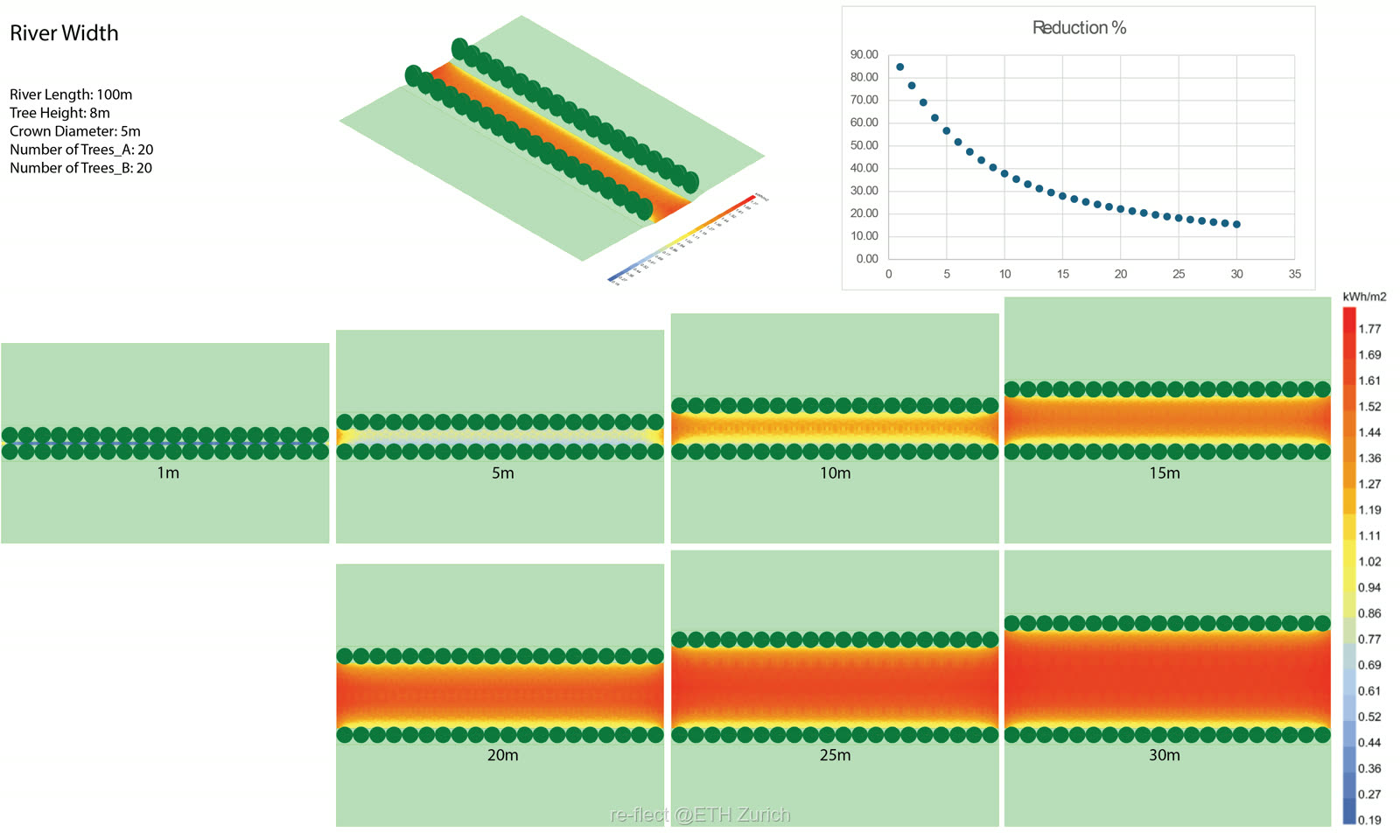

Chart: shading potential decays exponentially as river width increases
Shading potential versus river width — highly effective on small streams, marginal on wide channels.
Strategy: on wide rivers, “scattergun” planting is ineffective — use targeted orientation. For wide channels flowing east–west (the most vulnerable to heating), concentrate planting strictly on the southern bank. Planting the northern bank provides habitat, but its contribution to cooling is mathematically negligible.
